Synadia Protect

Synadia Protect (protect) is a NATS protocol proxy that sits in front of NATS clusters. It is a WAF (Web Application Firewall) for NATS. It inspects, evaluates, and enforces security policies on connections and message protocols flowing through it. The goal of Protect is to manage security at the edge — not application-level concerns like data format validation.

What it does

• Proxies NATS client and leafnode traffic to backend servers and/or clusters
• Evaluates rules against connections and messages in real time — by subject, header, payload, source IP, time of day, and more before being forwarded to the backend.
• Allows, denies, or suspends traffic based on the outcome of a policy
• Captures client traffic into traces for forensic analysis — tracing can be activated by a policy or on-demand
• Produces audit logs for every non-allow policy decision, suitable for SIEM integration

How it works

The gateway's unit of configuration is a port. Each port is an independent proxy — it evaluates protocol traffic against a set of rules (a ruleset), and forwards allowed traffic to a backend NATS cluster.

Rules are packaged into bundles — versioned, signed collections that can be installed, tested, and activated on a port without restarting the gateway.

The gateway ships with built-in rules covering common use cases (CIDR filtering, header inspection, payload matching, time-based access). Custom rules can be written using the Expr language.

Deployment modes

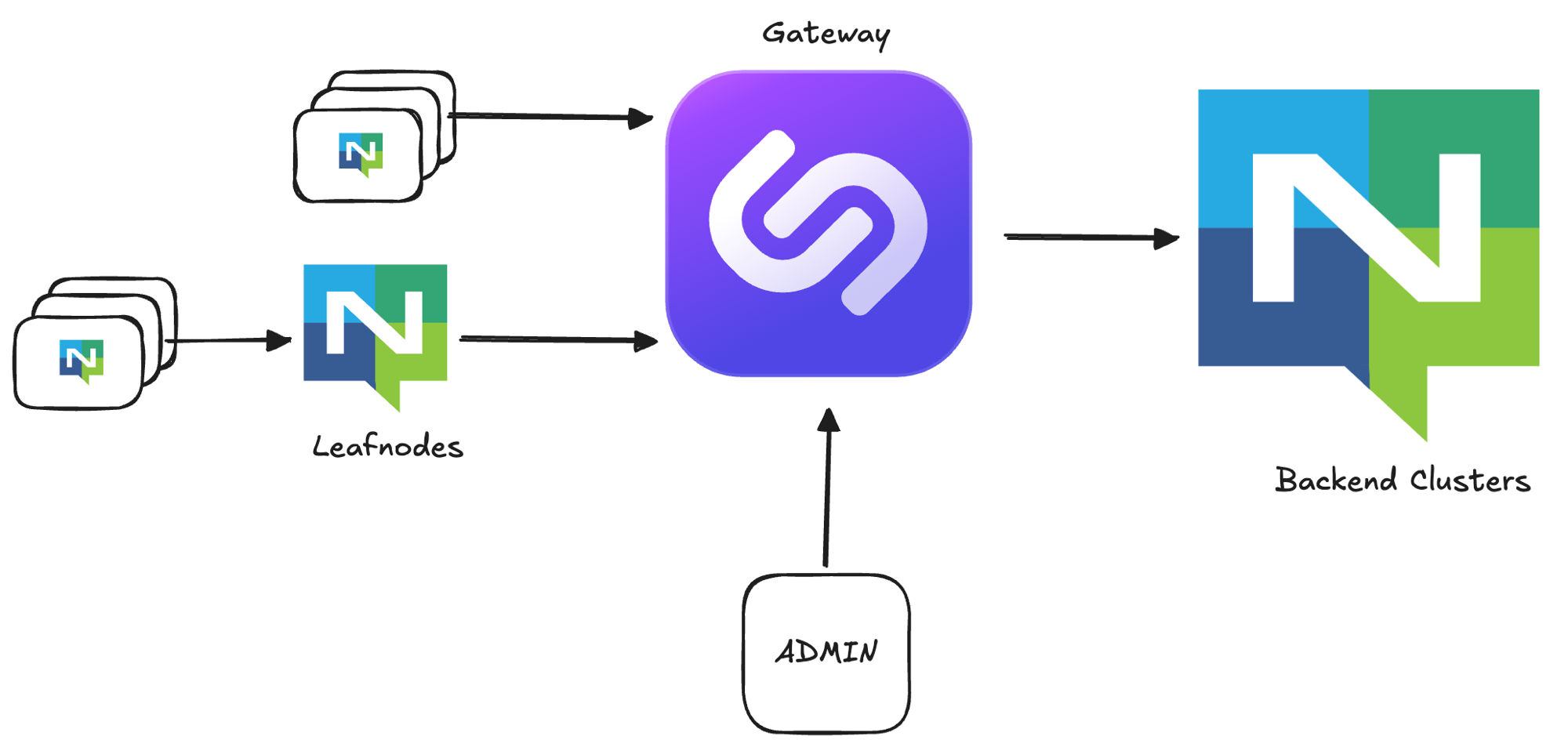

Standalone

A single gateway managing its own policies.

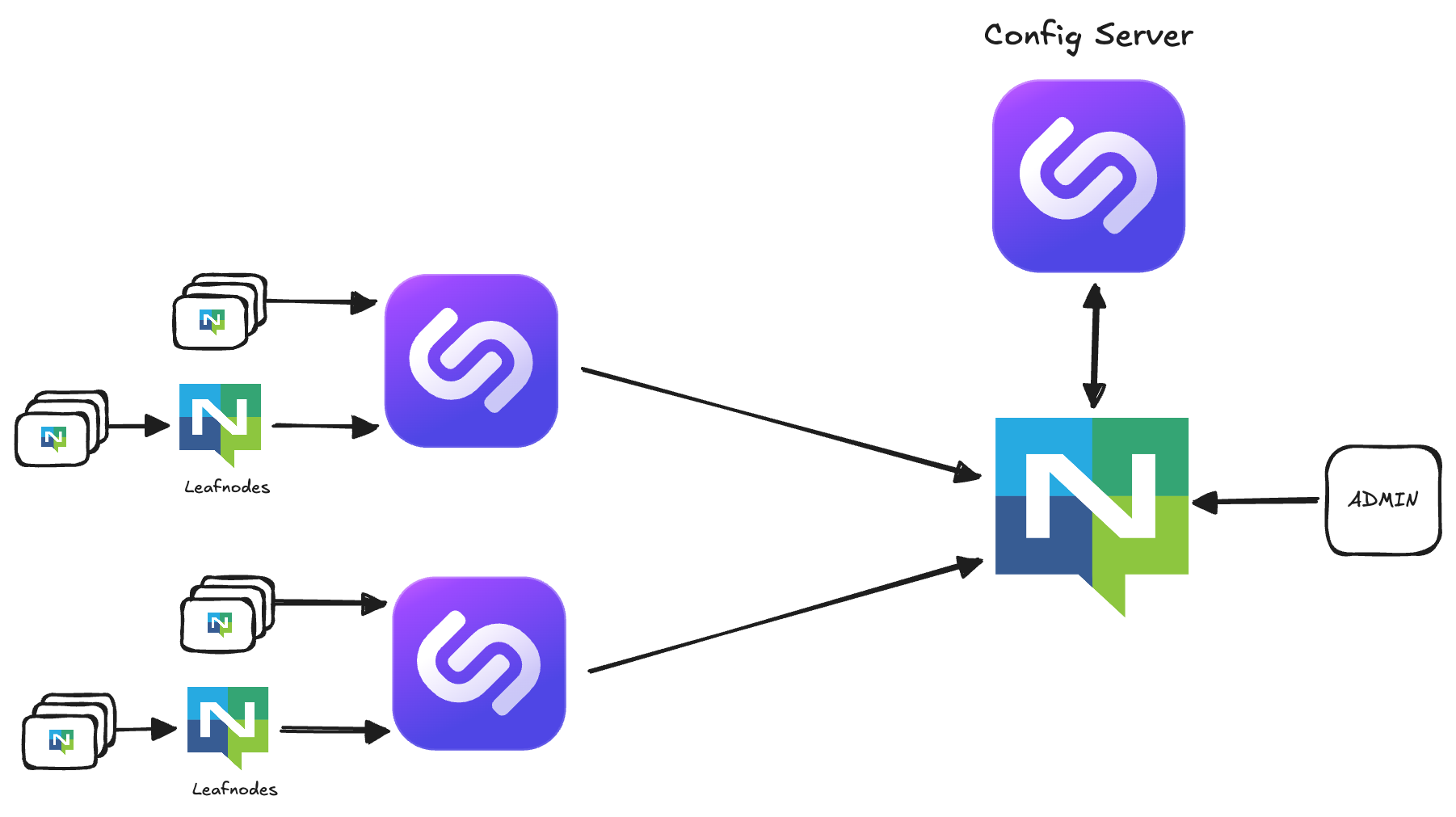

Configuration server + managed gateways

Centralized management for a fleet of gateways.

Getting started

This guide assumes familiarity with NATS concepts (pub/sub, subjects, authentication).

• Setting up a standalone gateway
• Setting up the UI
