NGS

Cross-Account Message Stream Share

Using the add export, generate activation, and add import commands of the nsc tool, a message stream may be made available to other accounts.

Note: an API provider may choose to make their message stream available to any account in NGS (public export) or to selected accounts only (private export). Private export is shown.

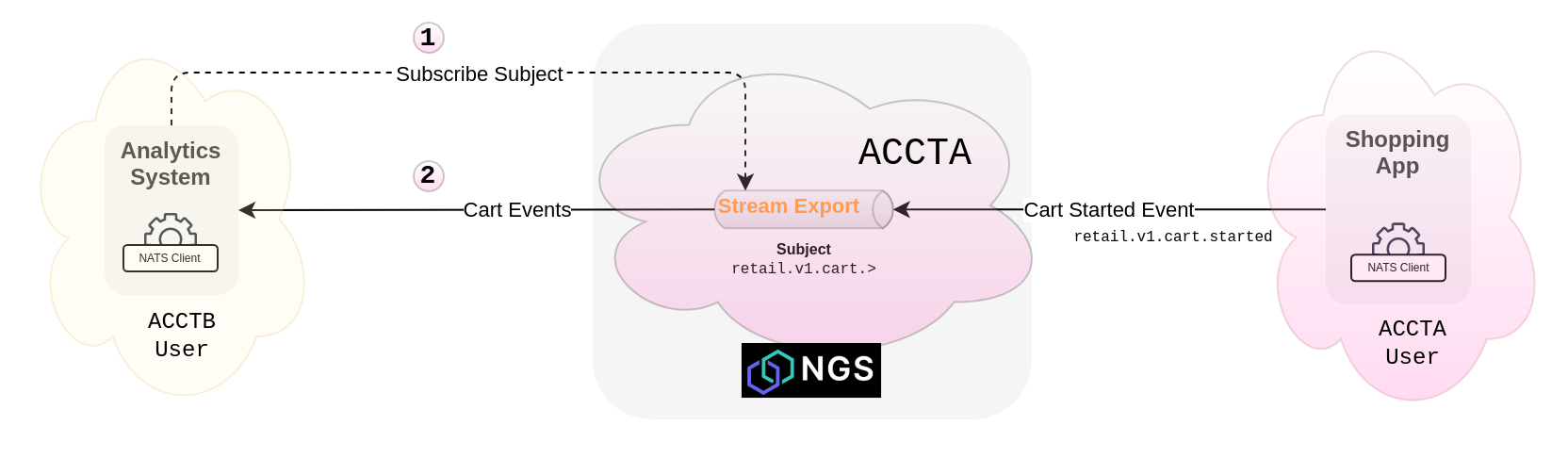

Shopping Cart Events Scenario

For illustration, we consider a click stream of UX navigation event notifications from a system (within ACCTA) handling real time shopping cart customer experience for a large online retailer. These events trigger immediate (session relevant) actions in downstream systems and are also consumed and analyzed to improve and optimize future customer interaction.

Cart events of multiple types are published to the subject retail.v1.cart.<event type> by the front-end application.

An analytics system that resides in ACCTB needs to process cart events into its learning models. The steps below show how to grant ACCTB access to subscribe and receive cart events.

See also ngs-xacct-demo/stream for scenario scripts.

Sharing a Stream

As the stream publishing account (ACCTA)

Publish Cart Events

You may use the NATS command-line tool to provide a mock Cart service that publishes Cart Started event notifications.

nats pub --context ACCTA retail.v1.cart.started 'Customer initiated Cart 1234!'
14:13:32 Published 29 bytes to "retail.v1.cart.started"

Note: ACCTB will not receive any messages published until the following steps are complete. Only publishes made when ACCTB has access and is actively subscribed will be delivered. Consider using JetStream if you require durable message streams.

Make your message stream eligible to be visible to other accounts

Add a private export of the Cart Events message stream on subject retail.v1.cart.> using the nsc add export command:

nsc add export --private --name CARTEVENTS-GRANT-STREAM --account ACCTA --subject 'retail.v1.cart.>'

Note: an export only makes a subject eligible to be imported into another account's namespace. Other accounts must explicitly import the subject. If the export is private (as here), other accounts must be in possession of an import grant activation token generated and provided by the exporter.

Explicitly allow ACCTB to receive published Cart Event messages

Generate an import grant activation token for ACCTB using the nsc generate activation command:

nsc generate activation --output-file CARTEVENTS-GRANT-STREAM-ACCTB.tok --account ACCTA --subject 'retail.v1.cart.>' --target-account AD7T74QPICDLJYKEJQ37RKP2VXUJYUUIHZ7XMGMWFEOZNKVO3VBF46F7

Note: ACCTA must known ACCTB's public key.

Provide the generated token file to the ACCTB owner.

As the stream subscriber account (ACCTB)

Accept access to the ACCTA stream

Add an import of the Cart Events stream using the grant activation token provided by the ACCTA owner and the nsc add import command:

nsc add import --token CARTEVENTS-GRANT-STREAM-ACCTB.tok --account ACCTB --name CARTEVENTS-GRANT-STREAM --local-subject 'retail.v1.cart.>'

Note: In this example, the ACCTB owner is electing to make the Cart Events stream visible to ACCTB users at retail.v1.cart.> but the local subject need not be the same.

Subscribe to Cart Events

You may use the NATS command-line tool to create a mock service that processes Cart Events. NATS will load balance multiple subscribers of the same queue name (optional).

nats sub --context ACCTB --queue cart-processor 'retail.v1.cart.>'
14:13:21 Subscribing on retail.v1.cart.>
[#1] Received on "retail.v1.cart.started"
Customer initiated Cart 1234!
