Schema Registry Deployment and Configuration

Docker

A Docker deployment guide leveraging Compose

This deployment method has the following prerequisites:

Access to Docker Engine
Docker Compose v2, built-in modern versions of the docker CLI
Access via Control Plane to an existing NATS system

Preparation

Prepare the NATS access URL and make sure the NATS system is reachable from the deployment location.

Enable Schema Registry in Control Plane

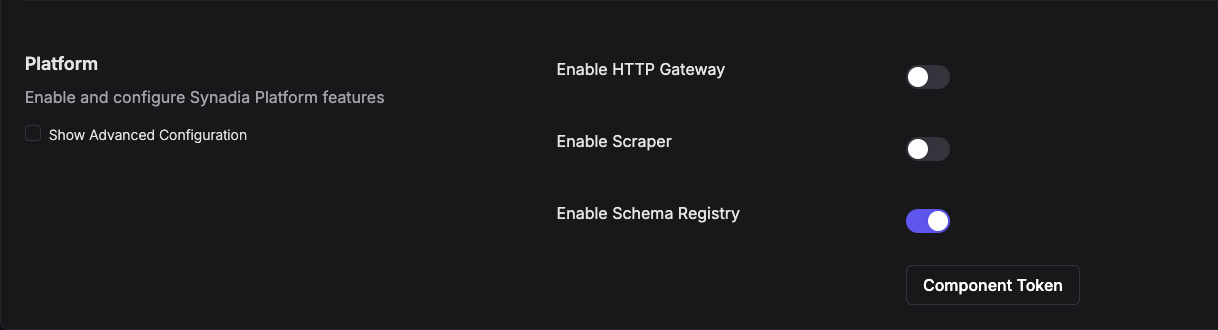

Navigate to the system page, click on the Settings page and under the Schema Registry section do the following:

Enable it

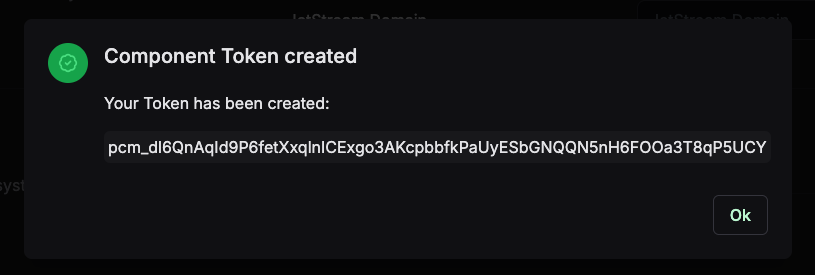

Click on Component Token and copy the token to your clipboard. We'll need it for docker compose
Click the Submit button at the top.

Using the registry credentials you were given, login to:

docker login registry.synadia.io

Docker Compose file

Create a file called docker-compose.yaml with the following settings:

services:
  schema-registry:
    image: registry.synadia.io/schema-registry:latest
    environment:
      SR_PLATFORM_CONTROL_PLANE_URL: '<CONTROL_PLANE_SERVER_URL>'
      SR_PLATFORM_TOKEN: '<PASTE_TOKEN_FROM_CONTROL_PLANE_HERE>'
    command:
      - 'platform'

Environment Variable	Usage
`SR_PLATFORM_CONTROL_PLANE_URL`	URL of the Control Plane instance - The UI base URL e.g https://control-plane:8080 - The schema registry will access the REST API to configure its assets.
`SR_PLATFORM_TOKEN`	A Platform token from Control Plane - Used to authenticate against the Control Plane API
`SR_NATS_SERVER_URL`	The NATS Server or cluster URL - Optional - By default obtained from Control Plane - Override if schema registry needs to use a URL different from the one the Control Plane sees. This MUST be the same NATS system though as attached to Control Plane.

Start the containers

Run the following command to bring up the stack.

docker compose up -d

Upgrade the image

To upgrade Control Plane's image and restart, use the following commands:

docker compose pull schema-registry
docker compose up -d

Stop the containers

docker compose down
